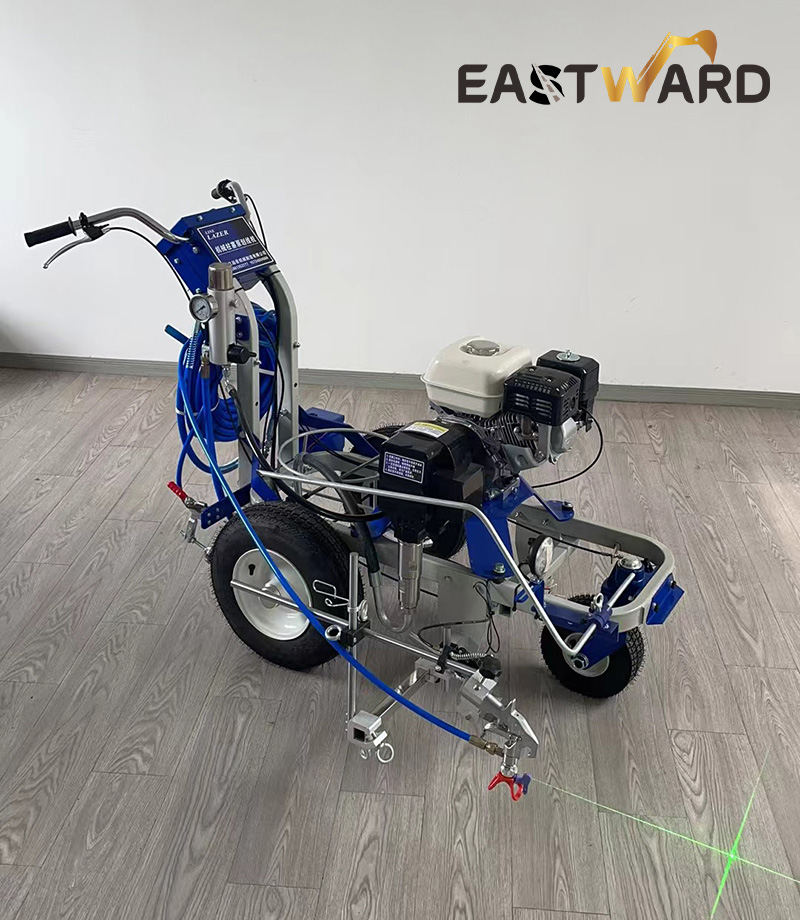

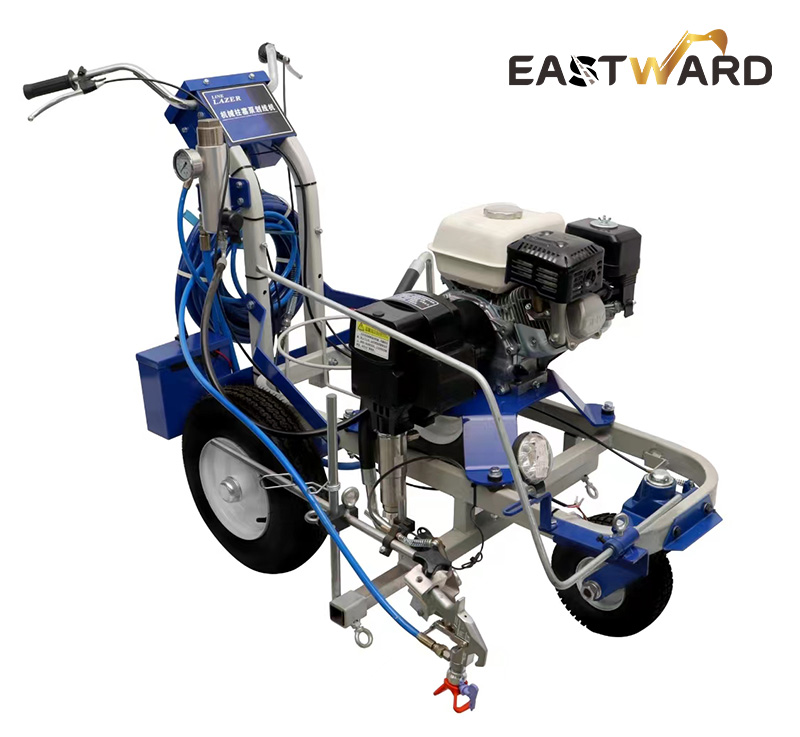

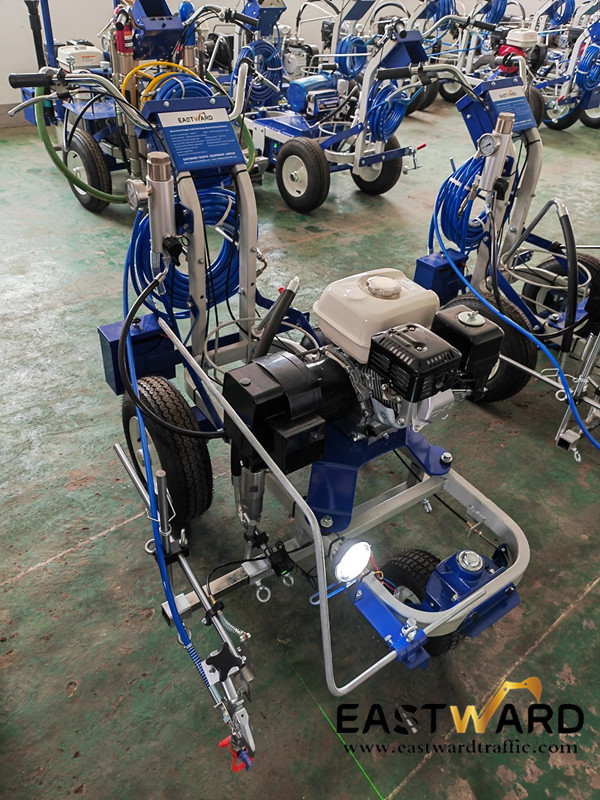

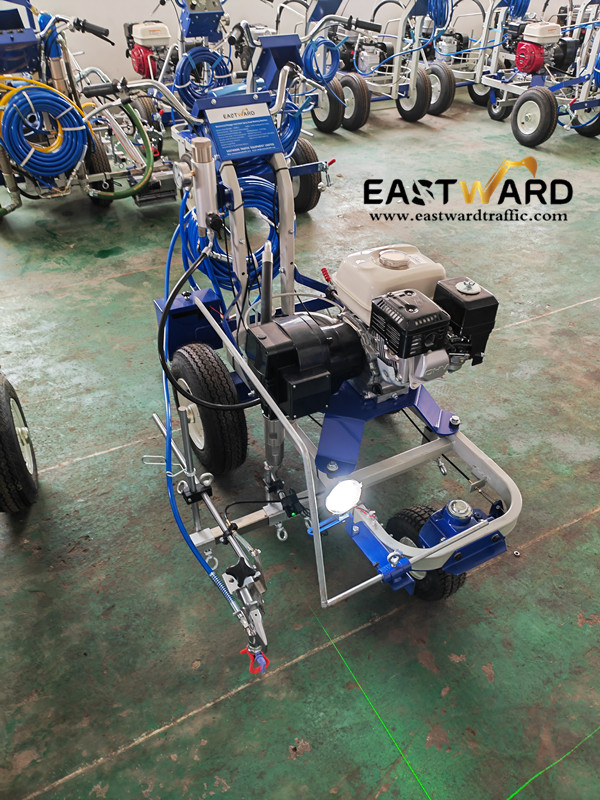

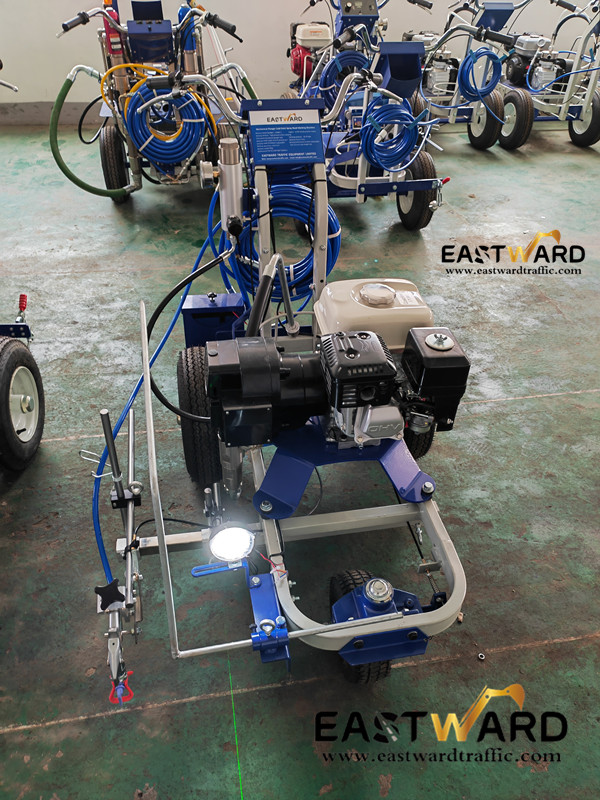

Mechanical plunger type Cold Paint Spray Road Marking with Laser guide

Mechanical plunger type Cold Paint Spray Road Marking with Laser guide is high-pressure airless line striper for solvent-based and waterborne coating spraying.

It comes with double guns, spray width can reach 50mm-450mm. With the pretty design, stable pump pressure, high quality rubber tyres,

special spray gun hanger, the painting lines are uniform and straight, line edges are neat and pretty.

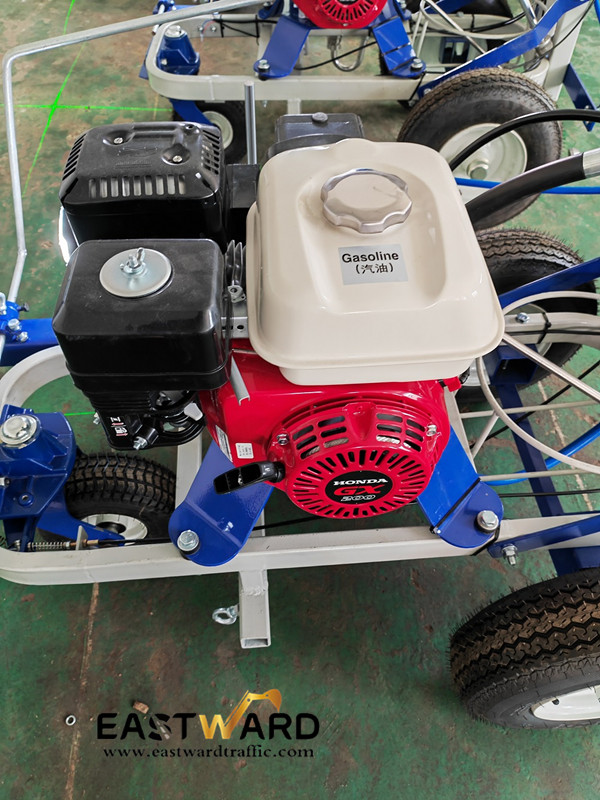

Cold paint line striper machine working principle. Through belts, the gasoline engine drives the hydraulic oil pump to rotate. The high-pressure hydraulic oil produced during the rotation of the hydraulic pump drives the hydraulic motor, which drives the plunger pump to move up and down, inhaling coatings from the suction pipe into the plunger pump. The high-pressure paint from the plunger pump is filtered in the filter and then goes into the spray gun, which is finally sprayed to the surface of the object through the gun.
